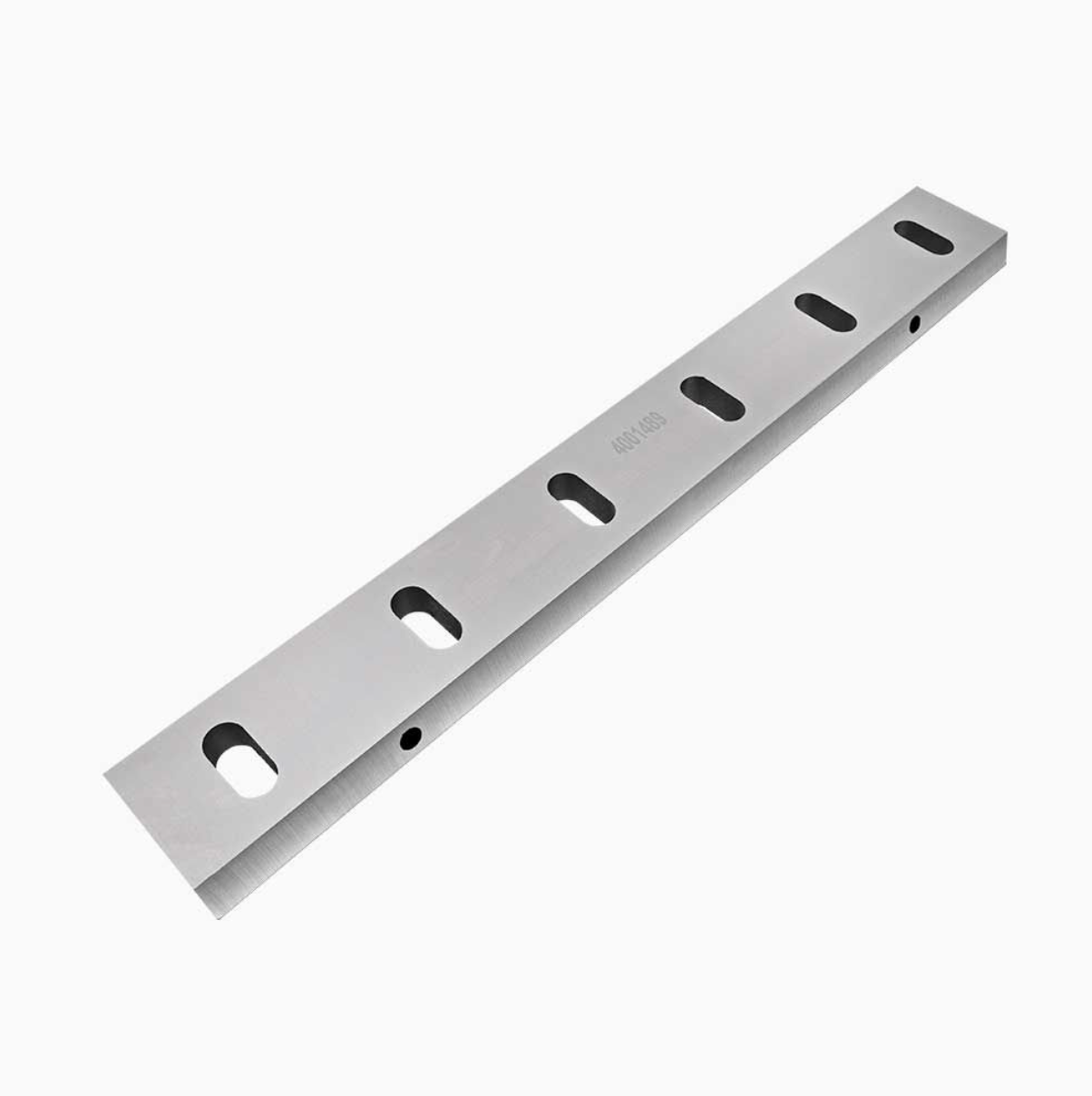

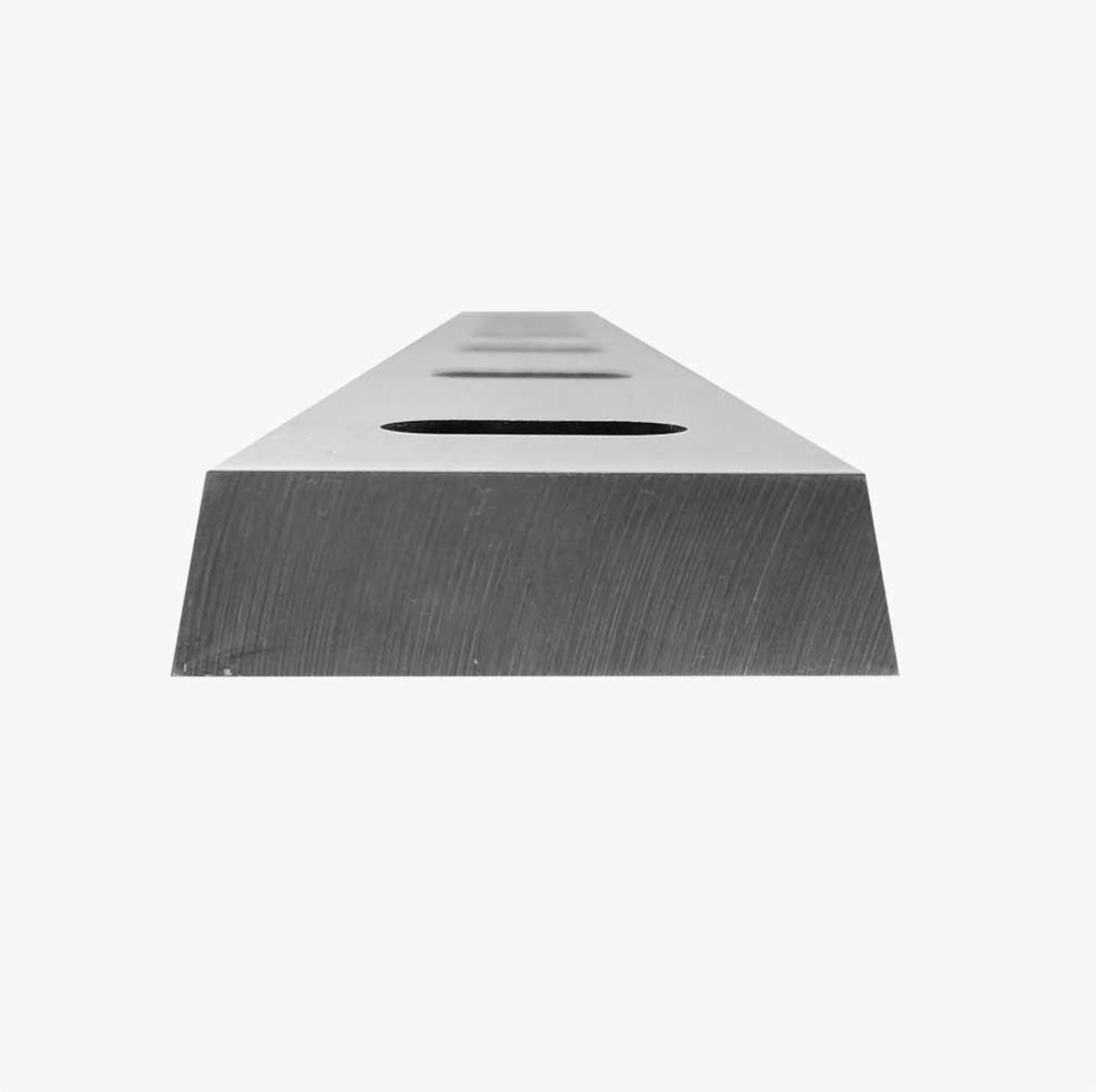

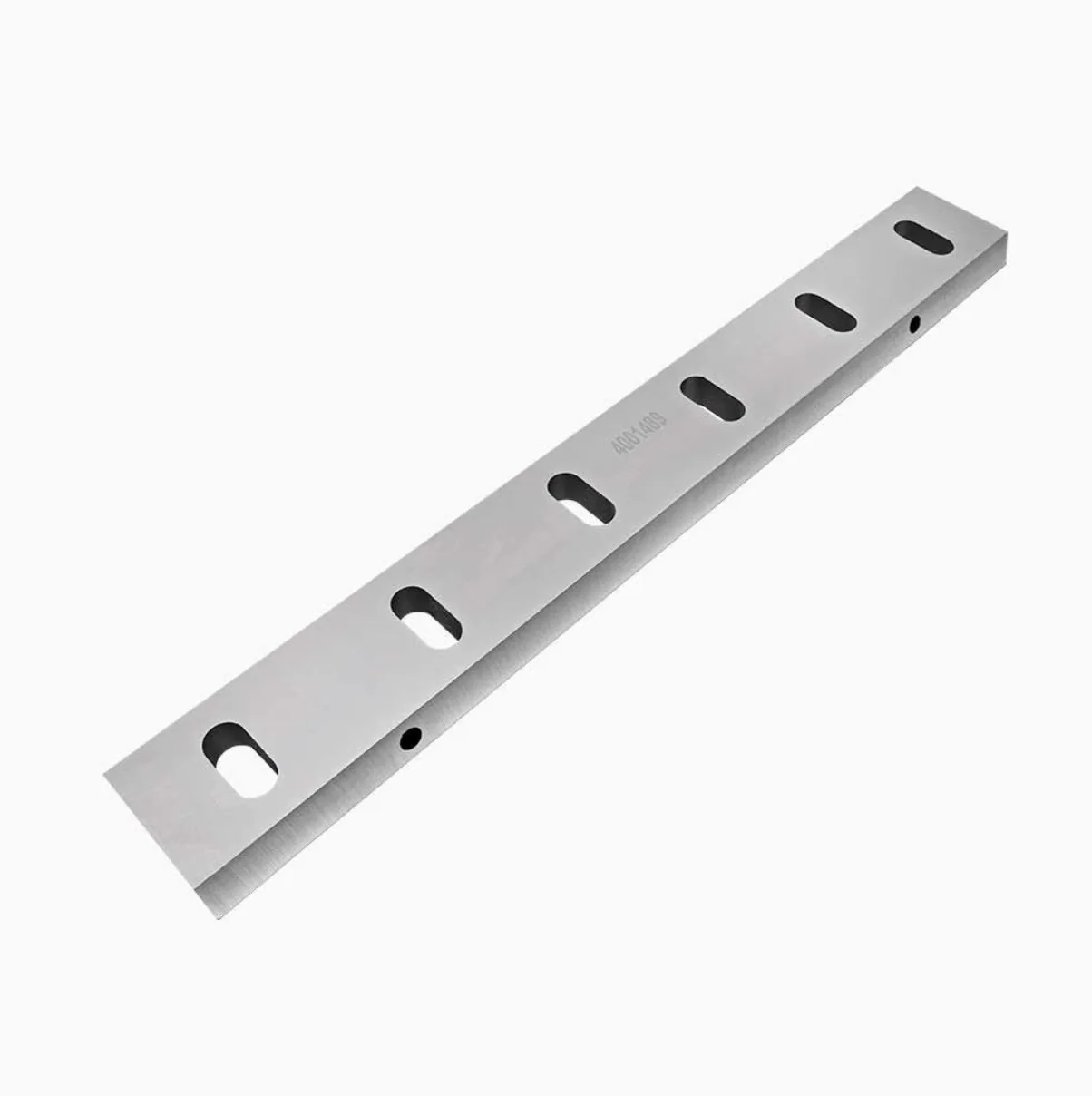

Ball & Jewell® Compatible Model CG1620SX Bed Knife
D2 Tool Steel
55-57 HRc
506.73 x 69.85 x 19.05 mm
Availability: Confirm on Enquiry
SKU:
HK-BJ-CG1620SX-BED
EACH
Technical Details
| Length (in) | 19.95 |
|---|---|
| Length (mm) | 506.73 |
| Width (in) | 2.75 |
| Width (mm) | 69.85 |
| Thickness (in) | 0.75 |
| Thickness (mm) | 19.05 |
| Material | D2 Tool Steel |
| Hardness Lower Limit (HRc) | 55 |
| Hardness Upper Limit (HRc) | 57 |
| OEM Model | CG1620SX |
| Oem Item | 406.11220.01 |
| Primary Bevel Angle (degrees) | 75 |
| Threaded Holes | 4 |
| Slots | 6 |
| Slot Length (in) | 1.375 |
| Slot Width (in) | 0.625 |
| Edge Style | Double-Edge |
| Bevel Style | Single Bevel |
| Thread Pitch | 3/8-16 UNC |
| Set Quantity | 2 |
| Quantity Sold By | Each |
Premium replacement bed knife for Ball & Jewell Model CG1620SX. Part #: HK-BJ-CG1620SX-BED.
